speakON-runkotarvikkeet











NL2MD-H

2 pole chassis connector, gray D-size flange, countersunk thru holes, horizontal PCB. Does not intermate with the 4-pole cable connector.



NL2MD-V

2 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount. Does not intermate with the 4-pole cable connector.



NL2MP

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector



NL4MD-H

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount



NL4MD-H-1

4 pole chassis connector, black D-size flange, countersunk thru holes, horizontal PCB mount



NL4MD-H-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount



NL4MD-H-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount



NL4MD-V

4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount



NL4MD-V-R

4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount



NL4MD-V-S

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not airtight.



NL4MD-V-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), vertical PCB mount



NL4MD-V-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount



NL4MP

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs



NL4MP-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs



NL4MP-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), 3/16" flat tabs



NL4MP-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs



NL4MP-M3

4 pole chassis connector, black D-size flange, M3 threaded insert, 3/16" flat tabs



NL4MP-ST

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.



NL4MP-UC

4 pole chassis connector for 40 A rms continuous, 50 A audiosignal duty cycle 50%. Black D-size flange, countersunk thru holes, 1/4" flat tabs

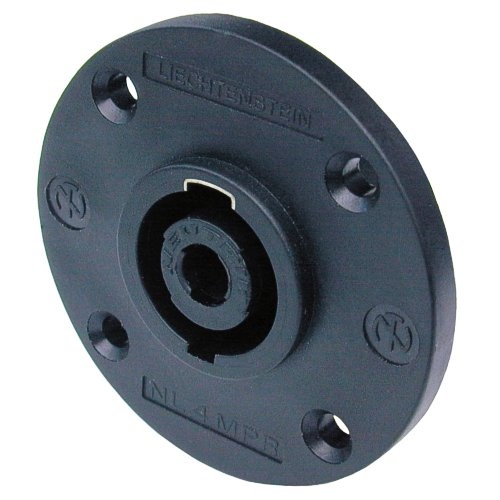

NL4MPR

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs



NL8MD-V

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, vertical PCB mount



NL8MD-V-BAG

8 pole chassis connector, black chrome square G-size flange, countersunk thru holes, vertical PCB mount



NL8MD-V-1

8 pole chassis connector, nickel metal square G-size flange, self tapping screw holes (A-screw), vertical PCB mount

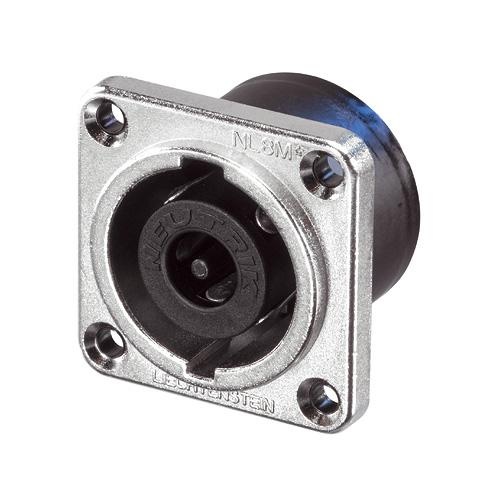

NL8MPR

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs



NL8MPR-BAG

8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs



NLJ2MD-H

2 pole combination of speakON socket and 1/4" jack receptacle, horizontal pcb mount, same pcb footprint and panel cut out as NL4MD-H



NLJ2MD-V

2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-V



NLT4MP

4 pole male chassis connector, metal housing, solder or ¼" flat tabs



NLT4MP-BAG

4 pole male chassis connector, black-chrome metal housing, solder or ¼" flat tabs



NLT4FP

4 pole female chassis connector, metall housing, solder contacts



NLT4FP-BAG

4 pole female chassis connector, black-chrome metal housing, solder contacts



NLT4MD-V

4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw)



NLT8MP

8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs



NLT8MP-BAG

8-pole male chassis connector, black-chrome metal housing, solder or ¼" flat tabs

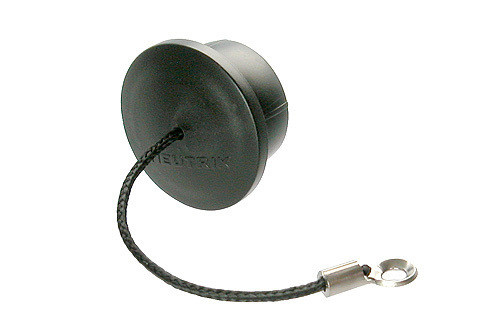

SCL

Dust protection cover for most speakON and powerCON chassis connectors

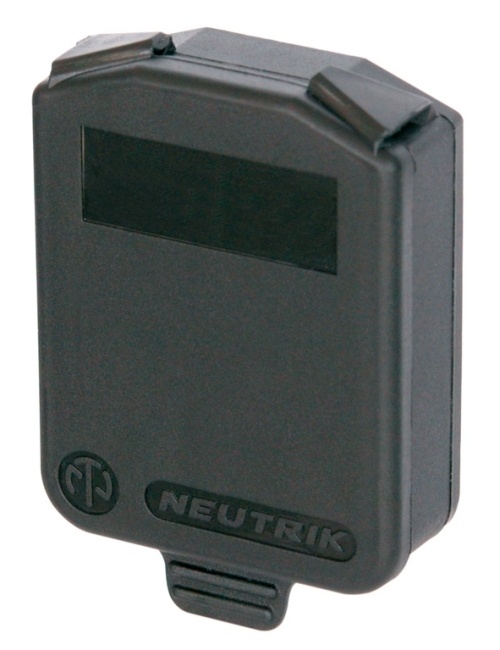

SCDX

Hinged cover for all D-size chassis connectors



SCDP-*

Sealing Gasket and color coding for D-size chassis connectors



SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

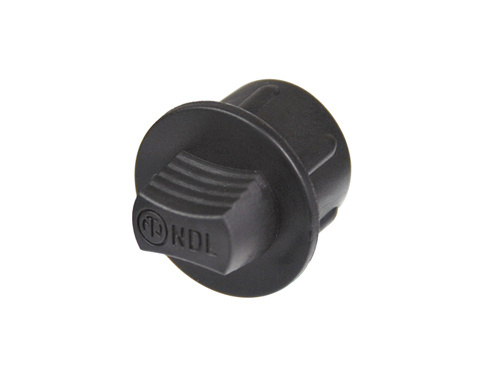

NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

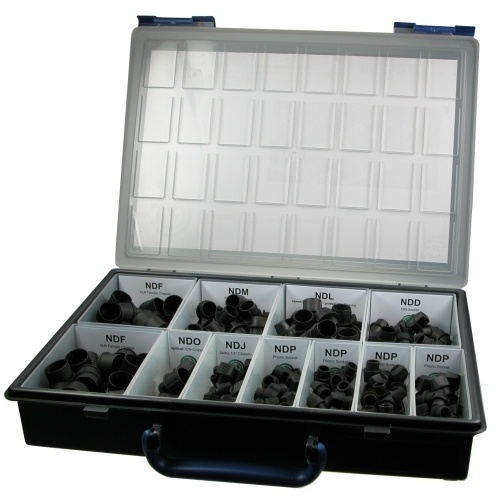

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs



SCNLT

Gasket for speakON G-size housings for an airtight connection between chassis and frontpanel (also suitable for Amphenol EP cutouts)



MFD

M3 mounting frame



NLFASTON

Faston receptacle for tabs with 'positive lock', Tab Fit 4.75 x 0.51 mm (0.187 x 0.02 in), Equivalent to AMP, pack of 100 pcs



A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead



Faston 1/4''

FASTON crimp wire connector for 1/4" tabs with 'positive lock'
