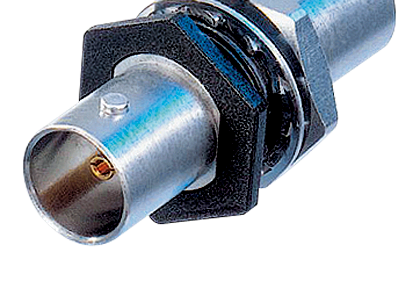

Kaapelijakkien paneelikiinnitteiset versiot

Cable Jacks Panel Version






Neutrikin BNC-kaapelijakkien paneelikiinnitteisissä versioissa on ”true 75 Ω” -suunnittelu ja ne sopivat sekä sarja- että digitaalisille (HD) signaaleille. Messingistä koneistettu rakenne kestää kovaakin käyttöä pitkään.



NBB75FG

Grounded BNC cable jack for panel mount, feedthrough, grounded



NBB75FI

Isolated BNC cable jack for panel mount, feedthrough



NBB75SI

Isolated BNC cable jack for panel mount, solder version



NBNB75IUU11

BNC cable jack for panel mount, isolated
Suitable cables:
Argosy Image 1000, Draka 1.0/4.8AF, Draka 755-901/5



NBNB75ILP9

BNC cable jack for panel mount, isolated
Suitable cables:
Belden 1505A, Belden 8241F, Canare L4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451



NBNB75GLP9

BNC cable jack for panel mount, grounded
Suitable cables:
Belden 1505A, Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451



NBNB75GUU11

BNC cable jack for panel mount, grounded
Suitable cables:
Argosy Image 1000, Draka 1.0/4.8AF, Draka 755-901/5, Klotz V10/48



NBTB75IFI4

BNC cable jack for panel mount, isolated
Suitable cables:
Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B



NBTB75INN5

BNC cable jack for panel mount, isolated
Suitable cables:
Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (Bulk)
