opticalCON DUO

opticalCON DUO

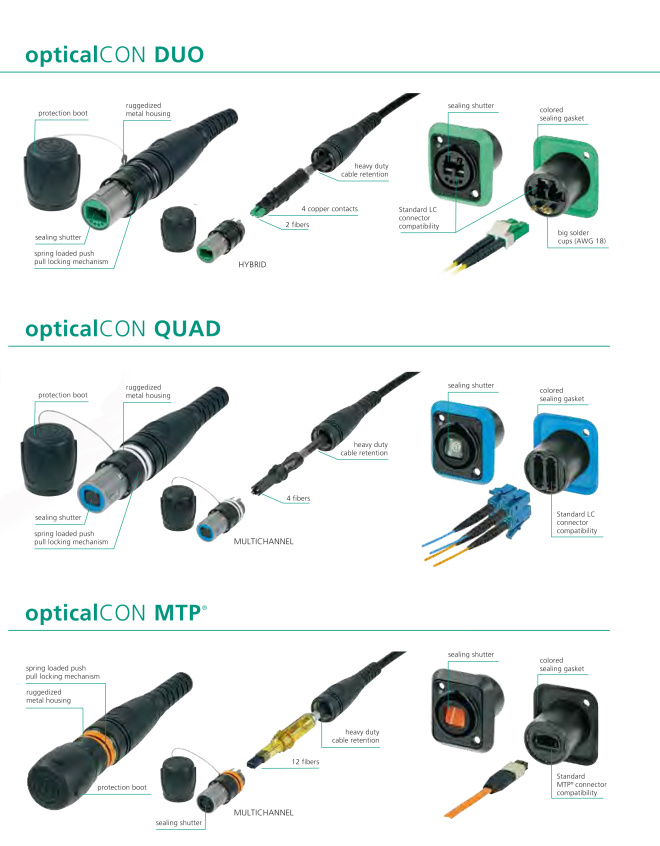

opticalCON on Neutrikin kuituoptinen tuoteperhe. Järjestelmäkokonaisuus perustuu LC-Duplex -liittimiin, mutta Neutrikin ratkaisussa ne on korvattu turvallisilla, pölysuojatuilla ja kestävillä kokometallisilla liittimillä.

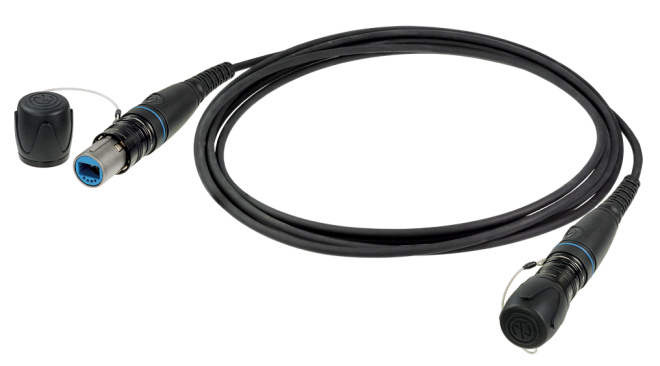

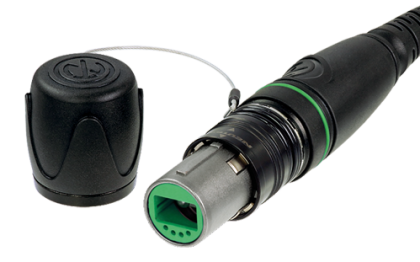

opticalDON DUO-kaapelit









opticalCON 2 channel field cable

Assembled 2 fibers rugged and lightweight mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC), military approved.



opticalCON multimode hybrid field cable

Assembled extra rugged hybrid cable with 2 multi-mode fibers and 4 x 0.75 mm2 copper conductors, GFK strength member and aramid yarn as cable retention. Low weight robust hybrid cable, only 78kg/km.



opticalCON SMPTE cable

Pre-assembled SMPTE cable with 2 single-mode fibers (PC or APC), 2xAWG24 and 2xAWG16 stranded copper conductors, overall copperbraided shield and stainless steel strength member, strong black PUR outer jacket for abrasion resistance.



opticalCON low voltage camera / SM hybrid cable

Assembled ultra-flexible and lightweight (65 kg/km) low voltage camera / SM hybrid cable with 2 single mode fibers and 2 AWG16 copper conductors, aramid yard cable retention. Cost effective fiber optic hybrid cable solution.



opticalCON DUO X-TREME

Assembled, 2 channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.



opticalCON DUO ARMORED

Due to the stainless steel armoring the opticalCON ARMORED cable gets enormously robust and resists even extraordinary strains. Despite the armoring the high flexibility and perfect handling remain with it.





opticalCON DUO -runkoliittimet

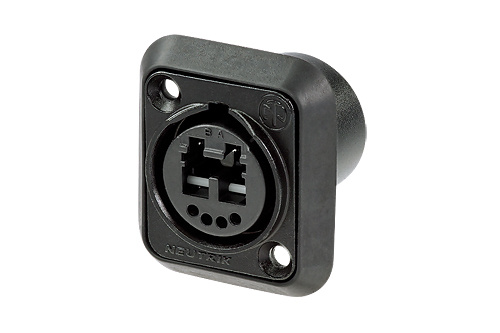

NO2-4FDW-A

Chassis connector, black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65



NO2-4FDW-1-A

Chassis connector, black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket, 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65

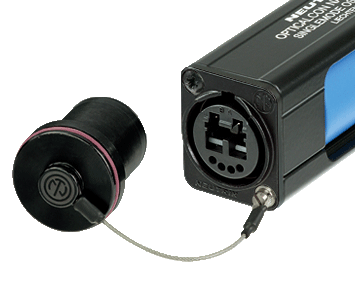

opticalCON DUO -tarvikkeet ja lisävarusteet





NAO2*-H1W-A

Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).

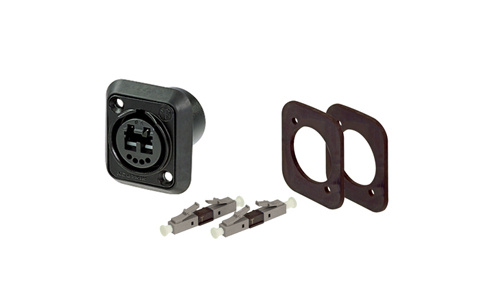

NAO2*-SFP-LC

The opticalCON Transceiver Adapter connects an opticalCON chassis (NO2-4FDW*) and a LC SFP transceiver



Field Assembly opticalCON Connector

Neutrik opticalCON field assembly kit based on Corning UniCam pre-polished LC connectors



IPKIT-NO*

IP65 upgrade kid for the old version of the opticalCON DUO cable connector (manufactured before November 2007) respectively replacement accessory of frontshell of opticalCON DUO and QUAD



SCNKO

Dirt protection for opticalCON DUO cable connector (spare part)



NDO

The dummyPLUG NDO for Neutrik opticalCON receptacles enables you to simplify cabling.



CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs



SCDX

Hinged cover for all D-size chassis connectors



SCDP-*

Sealing Gasket and color coding for D-size chassis connectors



SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.



NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-R)



SCNO*X-A

Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.



SCNO*X-R

Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.



SCNO-FDW-A

Rugged sealing cover for opticalCON chassis connectors



FOPS-SINGLE

The pulling sock simplifies the installation at a pulling force



FOPS-SPLIT

The pulling sock simplifies the installation at a pulling force.



SCNO*X-A-NC

Noise cancelling rubber protection cover for opticalCON cable connectors, including front housing.
