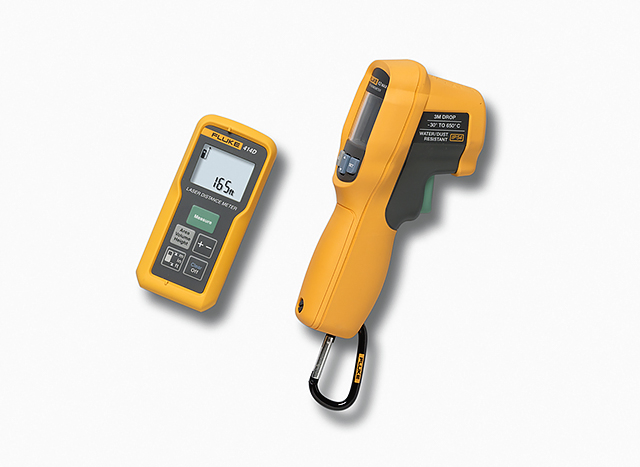

Fluke 414D/62 MAX+ -laseretäisyysmittari-infrapunalämpömittaripaketti

Ihannepaketti ongelmien, lämpötilojen ja tilavuuksien selvittämiseen



Tässä paketissa on kaikki, mitä tarvitset sähköisten/LVI -ongelmien selvittämiseen. Mittaa ensin Fluke 62 MAX+ -infrapunalämpömittarilla ylikuumenevat sähkölaitteet ja LVI-komponentit, ja laske sen jälkeen Fluke 414D-laseretäisyysmittarilla välimatkat, pinta-alat ja tilavuudet.



Toiminnot (englanniksi):

The 414D reduces errors, saves time and money.

  • The most advanced laser technology for distance measurement.
  • Measures up to 50 m (165 ft) with accuracy of 2 mm (0.08 in).
  • Quick calculation of area (square feet/meters) and volume.
  • Pythagoras function indirectly measures height via two other measurements.
  • Stores up to five measurement results.
  • Battery life of 3000 measurements with automatic shut-off feature.



Fluke 62 MAX+. Small in size. Big on toughness.

  • Dust and water-resistant: IP54 rated.
  • Rugged: 3-meter (9.8-foot) drop tested.
  • Ergonomically designed: Completely redesigned for a more natural hand fit.
  • Distance to spot: 12:1.
  • Dual lasers: Identifies area to be measured.
  • Large, backlit display: Makes data easier to read, even in dark areas.



Tekniset tiedot (englanniksi):

Fluke 414D Laser Distance Meter

Distance Measurement

Typical Measuring Tolerance[1]

± 2.0 mm [3]

Maximum Measuring Tolerance[2]

± 3.0 mm [3]

Range at Leica target plate GZM26

50 m / 165 ft

Typical Range[1]

40 m / 130 ft

Range at unfavorable condition[4]

35 m / 115 ft

Smallest unit displayed

1 mm / 1/16 in

∅ laser point at distances

6 /30 / 60 mm
(10 / 50 / 100 m)

Tilt measurement

Measuring tolerance to laser beam[5]

No

Measuring tolerance to housing[5]

No

Range

No

General

Laser class

2

Laser type

635 nm, <1 mW

Protection class

IP40

Automatic laser off

After 90 seconds

Automatic power off

after 180 seconds

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03

Up to 3,000
measurements

Size (H X W X L)

116mm Length
53mm Width
33mm Depth

Weight (with batteries)

113 g

Temperature range: Storage Operation

-25 °C to +70°C
(-13 °F to +158 °F)

0 °C to +40 °C
(32 °F to +104 °F)

Calibration cycle

Not applicable

Maximum altitude

3000 m

Maximum relative humidity

85% at 20 °F to 120°F
(-7 °C to 50 °C)

Safety

IEC Standard No. 61010-1:2001
EN60825-1:2007 (Class II)

EMC

EN 55022:2010
EN 61000-4-3:2010
EN 61000-4-8:2010

[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C.
[2] Applies for 10 to 500 % target reflectivity, high background illumination, -10 °C to +50 °C.
[3] Tolerances apply from 0.05 m to 10 m with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m.
[4] Applies for 100 % target reflectivity, background illumination between 10'000 lux and 30'000 lux.
[5] After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.


Fluke 62 MAX+ Infrared Thermometer



Specifications

Temperature Range

-30 °C to 650 °C (-22 °F to 1202 °F)

Accuracy

±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0

Response Time (95%)

Fluke 62 MAX+

<300 ms (95% of reading)

Spectral Response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical Resolution

12:1 (calculated at 90% energy)

Display Resolution

0.1 °C (0.2 °F)

Repeatability of Readings

±0.5% of reading or <±0.5 °C (1 °F), whichever is greater

Power

AA battery

Battery Life

8 hours with laser and backlight on

Physical Specifications

Weight

255 g (8.99 oz)



Size

(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches



Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)



Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F), (without battery)



Operating Humidity

10 % to 90 % RH non-condensing at 30 °C (86 °F)



Operating Altitude

2000 meters above mean sea level



Storage Altitude

12,000 meters above mean sea level



IP Rating

IP 54 per IEC 60529



Drop Test

3 meters



Vibration and Shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms



EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and Agency Approval

Compliance

 EN/IEC 61010-1: 2001



Laser Safety

FDA and EN 60825-1 Class II
