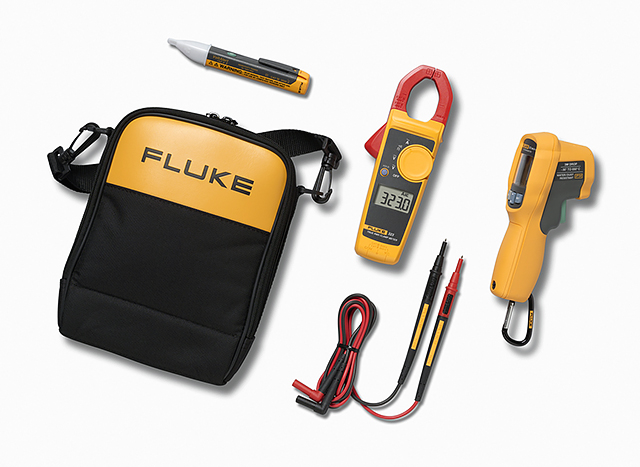

Fluke 62 MAX+ /323/ 1AC- infrapunalämpömittari-, pihtimittari- ja jännitteenkoetinpaketti

Suunniteltu sähköasentajille ja LVI-huoltohenkilökunnalle



Tämä paketti on suunniteltu sähkö- ja LVI-huoltomiehille ongelmien nopeaa ratkaisemista varten. Etsi ensin infrapunalämpömittarilla kuumenneet laitteet, ja käytä sen jälkeen pihtimittaria ja jännitteenkoetinta ongelman tarkempaan määrittelyyn.



Ominaisuudet (englanniksi):

Fluke 62 MAX+. Small in size. Big on toughness.

  • Dust and water-resistant: IP54 rated.
  • Rugged: 3-meter (9.8-foot) drop tested.
  • Ergonomically designed: Completely redesigned for a more natural hand fit.
  • Distance to spot: 12:1.
  • Dual lasers: Identifies area to be measured.
  • Large, backlit display: Makes data easier to read, even in dark areas.

Fluke 323 True-rms Clamp Meter. Rugged. Reliable. Precise.

  • 400 A ac current measurement.
  • 600 V ac and dc voltage measurement.
  • True-rms ac voltage and current for accurate measurements on non-linear signals.
  • Resistance measurement up to 40 kΩ with continuity detection.
  • Slim, ergonomic design.
  • CAT IV 300V/CAT III 600 V safety rating.

Fluke 1AC II VoltAlert™ Voltage Detector

  • Voltbeat™ technology and continuous self-test, so always know it’s working.
  • Upon detection, tip glows and beeper sounds.
  • Voltage detection of 90 to 1000V ac.
  • CAT IV 1000 V for added protection.

Fluke C115 Soft Case

Lightweight soft case to provide optimal protection and accessory storage.



Tekniset tiedot (englanniksi):

Fluke 62 MAX+ Infrared Thermometer

Specifications

Temperature Range

-30 °C to 650 °C (-22 °F to 1202 °F)

Accuracy

±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0

Response Time (95%)

Fluke 62 MAX+

<300 ms (95% of reading)

Spectral Response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical Resolution

12:1 (calculated at 90% energy)

Display Resolution

0.1 °C (0.2 °F)

Repeatability of Readings

±0.5% of reading or <±0.5 °C (1 °F), whichever is greater

Power

AA battery

Battery Life

8 hours with laser and backlight on

Physical Specifications

Weight

255 g (8.99 oz)



Size

(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches



Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)



Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F), (without battery)



Operating Humidity

10 % to 90 % RH non-condensing at 30 °C (86 °F)



Operating Altitude

2000 meters above mean sea level



Storage Altitude

12,000 meters above mean sea level



IP Rating

IP 54 per IEC 60529



Drop Test

3 meters



Vibration and Shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms



EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and Agency Approval

Compliance

 EN/IEC 61010-1: 2001



Laser Safety

FDA and EN 60825-1 Class II



Fluke 323 True-rms Clamp Meter

Specifications

AC current

Range

400.0 A

Accuracy

2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)

AC voltage

Range

600.0 V

Accuracy

1.5 % ± 5 digits

DC voltage

Range

600.0 V

Accuracy

1.0 % ± 5 digits

Resistance

Range

400.0 Ω/ 4000 Ω

Accuracy

1.0 % ± 5 digits

Continuity

≤ 70 Ω

AC response

True-rms

Data hold

Yes

Size

H x W x D (mm)

207 x 75 x 34

Max wire diameter

30 mm (600 MCM)

Weight

265 g

Category rating

CAT III 600 V
CAT IV 300 V

Warranty

Two-year



Fluke 1AC-II VoltAlert

Specifications

Operating principle

Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model

Detector tip style

Blade or round, depending on model

Light source

One high intensity red LED

Agency Approvals

c CSA us, CE, C-Tick

Safety Rating

1000 V, CAT IV

IP Rating

IP 40

Operating Temperature

-10 °C to 50 °C

Operating humidity ranges

0 % to 95 %

 (0 °C to 30 °C)

0 % to 75 %

 (30 °C to 40 °C)

0 % to 45 %

 (40 °C to 55 °C)

Operating Altitude

3000 meters

Batteries

2 AAA alkaline batteries included


Note: Product does not respond to random electrostatic discharge.
