XLR-kaapeliliittimien tarvikkeet & lisävarusteet













BSX-*

Colored bushings



BTXX

Speed boot assembly tool to press XX boot onto shell.



BXX-*

Colored bushings

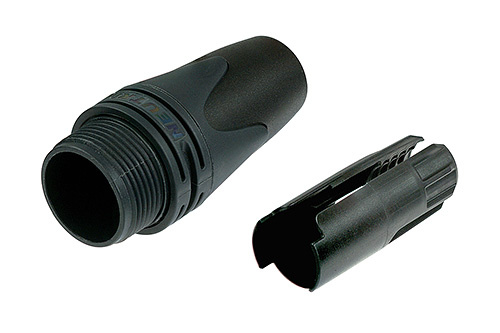

BXX-14

Large bushing with chuck type strain relief (8 mm - 10 mm cable O.D.).

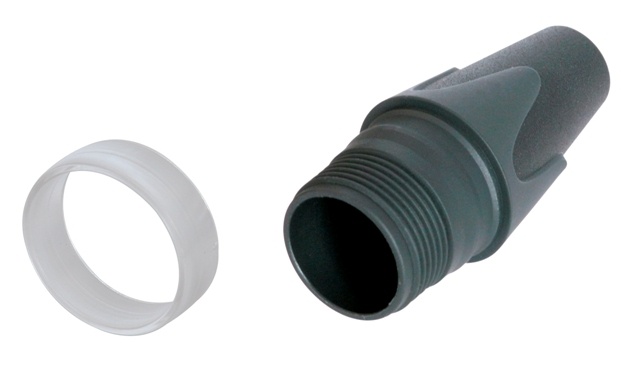

BXX-CR

Black bushing with clear coding ring



DIE-BNC-PG

Crimp tool die for HX-BNC
Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)



DIE-R-BNC-PG

Crimp tool die for HX-R-BNC
Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

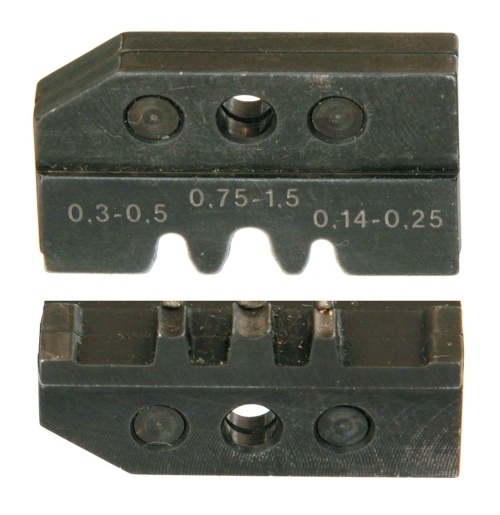

DIE-R-HA-1

Die for Crimp XLR XX-HA



HA-3FXX

Replacement crimp contact for the NC3FXX-HA cable connector and the NC3FD-LX-HA receptacle



HA-3MXX

Replacement crimp contact for the NC3MXX-HA cable connector and the NC3MD-LX-HA receptacle



HTXP

Hand tool for tightening the bushing of the XLR XX-series and the Plug PX-series.



HX-BNC

Crimp tool, frame
ATTENTION: Suitable dies are DIE-BNC-*



HX-R-BNC

Crimp tool, frame
ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

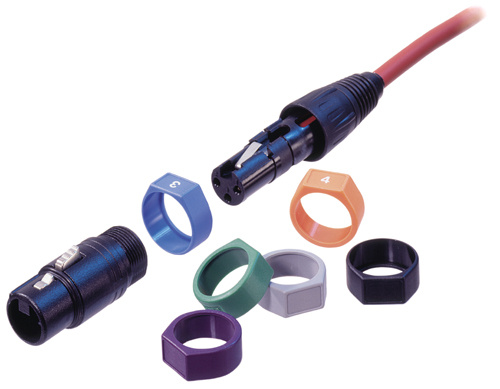

XCR-*

Colored coding rings with labeling block. Colour ring can be changed without unsoldering insert.



XXCR

Transparent coding ring which allows an individual customized labeling, branding, coding etc.

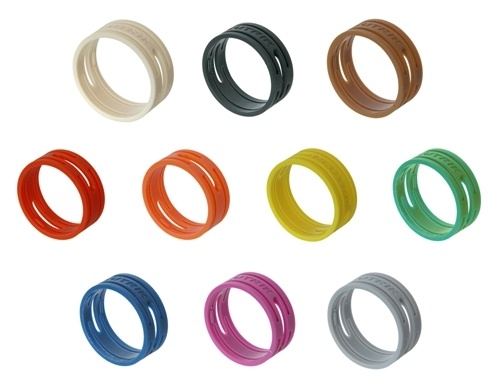

XXR-*

Colored coding rings. Insert must not be unsoldered to change the color coding.
