Fluke 1587/ET Kehittynyt sähköisten ongelmien ratkaisupaketti
Suunniteltu vianhakuun sekä ennakoivaan kunnossapitoon
Ennakoiva kunnossapito on yhä tärkeämpää, kun yritykset haluavat minimoida seisokeista aiheutuvat kustannukset (joillakin aloilla tyypillisesti 1–3 % liikevaihdosta, ja jopa 30–40 % katteesta).
Fluke 1587/ET-paketti on suunniteltu nimenomaan vianhakuun ja ennakoivaan kunnossapitoon.

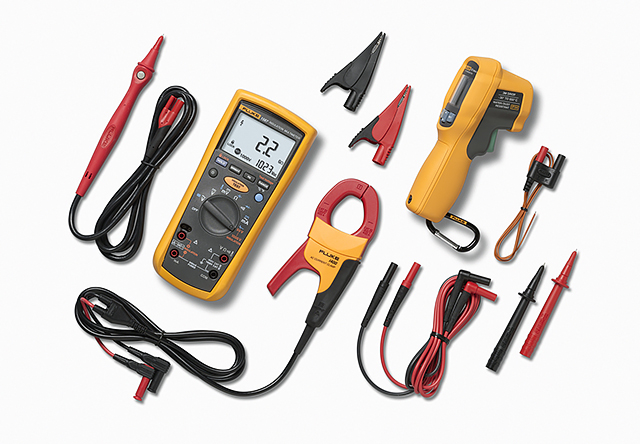

Paketin sisältö:
- Fluke 1587-eristysvastus/yleismittari
- Fluke i400-virtapihti
- Fluke 62 MAX+ -infrapunalämpömittari
Ominaisuuksia (englanniksi):
Fluke 1587 Insulation Multimeter
- With the Fluke 1587, perform insulation tests, plus a wide-range of DMM tasks with confidence and ease.
- Two products in one: Powerful and full-featured multimeter.
- Ideal for work on motors, cables, and switch gear.
- Large display with backlight.
- Filter for motor drive measurements.
- Insulation test (0.01MΩ to 2GΩ).
- Insulation test voltages (50 V, 100 V, 250 V, 500 V, 1000 V) for many applications.
- CAT III 1000 V /CAT IV 600 V overvoltage rating for added user protection.
Fluke i400 Current Clamp
- Use the Fluke i400 with your Fluke 1587 to accurately measure AC current without breaking the circuit.
- Use with your Fluke 1587 to measure 1A AC to 400 A AC.
- 1 mA/Amp output guarantees easy reading.
- CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection.
- Specially designed to offer maximum utility in a very compact shape.
- Maximum conductor: Ø 32 mm.
Fluke 62 MAX+ IR Thermometer
- Dust and water-resistant: IP54 rated.
- Rugged: 3-meter (9.8-foot) drop tested.
- Ergonomically designed: Completely redesigned for a more natural hand fit.
- Distance to spot: 12:1.
- Dual lasers: Identifies area to be measured.
- Large, backlit display: Makes data easier to read, even in dark areas.
Tekniset tiedot (englanniksi):
Specifications |
||
Voltage DC |
Maximum Voltage |
1000 V |
Accuracy |
±(0.09%+2) |
|
Maximum Resolution |
0.001V |
|
Voltage AC |
Maximum Voltage |
1000 V |
Accuracy |
±(2%+3) |
|
AC Bandwidth |
5kHz* |
|
Maximum Resolution |
0.1 mV |
|
Current DC |
Maximum Amps |
400mA |
Amps Accuracy |
±(0.2%+2) |
|
Maximum Resolution |
0.01 mA |
|
Current AC |
Maximum Amps |
400mA |
Amps Accuracy |
±(1.5%+2)* |
|
Maximum Resolution |
0.01 mA |
|
Resistance |
Maximum Resistance |
50 MΩ |
Accuracy |
±(0.9%+2) |
|
Maximum Resolution |
0.1Ω |
|
Capacitance |
Maximum Capacitance |
9,999 µF |
Accuracy |
±(1.2%+2) |
|
Maximum Resolution |
1 nF |
|
Frequency |
Maximum Frequency |
100 kHz |
Accuracy |
±(0.1%+1) |
|
Maximum Resolution |
0.01 Hz |
|
Temperature Measurement |
-40.0 °C to 537 °C |
|
Diode Test |
Range |
6 V |
Resolution |
1 mV |
|
Accuracy |
±(2 % + 1) |
Insulation Test |
||
Minimum Test Current @ 1kΩ/V |
1mA |
|
Test Voltages |
50, 100, 250, 500, 1000 V |
|
Maximum Resistance per Test Voltage |
50V |
|
100V |
|
|
250V |
|
|
500V |
|
|
1000V |
2 GΩ |
|
Maximum Resolution per Test Voltage |
50V |
0.01 MΩ |
100V |
0.01 MΩ |
|
250V |
0.1 MΩ |
|
500V |
0.1 MΩ |
|
1000V |
0.1 MΩ |
|
Accuracy per Test Voltage |
50V |
±(3 % + 5) |
100V |
±(3 % + 5) |
|
250V |
±(1.5 % + 5) |
|
500V |
±(1.5 % + 5) |
|
1000V |
±(1.5 % + 5) to 600 MΩ, ±(10 % + 3) above 600 MΩ |
Environmental Specifications |
|
Operating temperature |
–20 °C to +55 °C |
Storage temperature |
-40°C to +60°C |
Humidity (Without Condensation) |
0% - 95% (10 °C – 30 °C) |
0% - 75% (30 °C – 40 °C) |
|
0% - 40% (40 °C – 55 °C) |
|
Operating Altitude |
2000 m |
Safety Specifications |
|
Overvoltage category |
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V |
Agency Approvals |
2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V |
Mechanical & General Specifications |
||
Size |
203 x 100 x 50 mm (with holster) |
|
Weight |
624 g |
|
Warranty |
3 years |
|
Battery life Alkaline |
Meter use |
1000 hours |
Insulation test use |
Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
|
IP Rating |
IP40 |
i400 AC Current Clamp
Specifications |
|
Nominal current range |
400A |
Continuous current range |
1 A - 400 A |
Maximum Non-Destructive Current |
1000 A |
Lowest measurable current |
1 A |
Basic accuracy |
2% + 0.06 A |
Useable frequency |
5 Hz - 20 kHz |
Output level(s) |
1 mA/A |
Safety Specifications |
|
Safety |
CAT IV 600 V, CAT III, 1000 V |
Maximum voltage |
1000 V AC rms from earth to ground, in compliance with EN61010 |
Mechanical & General Specifications |
|
Warranty |
1 year |
Maximum conductor diameter |
32 mm (1.25 inches) |
Maximum conductor size (busbar) |
750 MCM |
Output cable length |
1.5 m (59 inches) |
Shrouded banana plugs |
Yes |
Fluke 62 MAX+ Infrared Thermometer
Specifications |
||
Temperature Range |
-30 °C to 650 °C (-22 °F to 1202 °F) |
|
Accuracy |
±1.0 °C or ±1.0% of reading, whichever is greater |
|
Response Time (95%) |
Fluke 62 MAX+ |
<300 ms (95% of reading) |
Spectral Response |
8 to 14 microns |
|
Emissivity |
0.10 to 1.00 |
|
Optical Resolution |
12:1 (calculated at 90% energy) |
|
Display Resolution |
0.1 °C (0.2 °F) |
|
Repeatability of Readings |
±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
|
Power |
AA battery |
|
Battery Life |
8 hours with laser and backlight on |
|
Physical Specifications |
Weight |
255 g (8.99 oz) |
Size |
(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches |
|
Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
|
Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F), (without battery) |
|
Operating Humidity |
10 % to 90 % RH non-condensing at 30 °C (86 °F) |
|
Operating Altitude |
2000 meters above mean sea level |
|
Storage Altitude |
12,000 meters above mean sea level |
|
IP Rating |
IP 54 per IEC 60529 |
|
Drop Test |
3 meters |
|
Vibration and Shock |
IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
|
EMC |
EN 61326-1:2006 EN 61326-2:2006 |
|
Standards and Agency Approval |
Compliance |
EN/IEC 61010-1: 2001 |
Laser Safety |
FDA and EN 60825-1 Class II |
