opticalCON SPLIT

opticalCON SPLIT -sarjasta löydät järeät haaroituskaapelit optisiin kuituliitäntöihin.





opticalCON POWER SPLIT





opticalCON POWER SPLIT



Features & Benefits:

  • opticalCON multichannel solution based on the opticalCON QUAD and powerCON
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • 1 m split, mechanically damaged connector can be reassembled with a shortened cable split
  • Color coding for channel identification
  • Rugged 4-channel fiber optic connection system, flexible, weight and cost optimized
  • For Point-to-Point multichannel routing and ENG/SNG applications: combination of multi-fiber and power (up to 240V AC / 16 A) in one cable in order to guarantee quick setup and simple handling
  • The copper wires of the hybrid cable design perfectly protect the fibers from damage and an outer shield provides best possible safety.
  • powerCON TRUE1 guarantees a rugged and safe power connection
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition (opticalCON connectors)
  • Innovative spherical shutter guarantees low maintenance
  • Custom split configuration possible

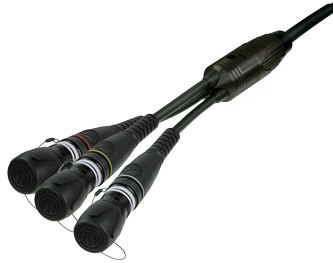

opticalCON SPLIT





opticalCON SPLIT



Features & Benefits:

  • opticalCON multichannel solution based on the opticalCON DUO, QUAD or MTP®
  • Maximum flexibility combining 2-, 4- and 12-channel cables
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • 1 m SPLIT: mechanically damaged connectors can be reassembled with a slightly shortened cable split
  • Color coding for channel identification
  • Rugged fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition
