IndraMotion MTX standard

Universaali CNC-ohjain



IndraMotion MTX Standard on täydellinen PLC-integroitu CNC-ohjain. Uuden IndraControl L:n moduulit ovat vankkoja, huoltovapaita ja omaavat korkean suorituskyvyn. Edistykselliset liitännät ja ylimääräiset I/O-mahdollisuudet luovat erinomaisen, yleiskäyttöisen CNC-ohjauksen. Jopa perusversio tarjoaa erinomaisen suorituskyvyn 8 akselilla, joista kahta voidaan käyttää karan toimintoihin.

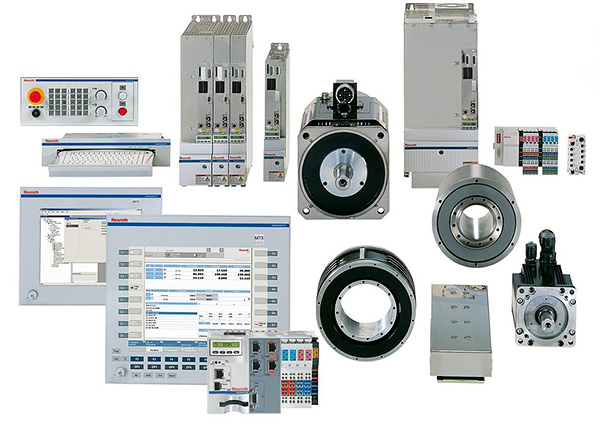

Sisäänrakennettu mahdollisuus käyttää teollisuus-Ethernetiä ja Profibusia. IndraDrive-käytöt ja IndraDyn-moottorit täydentävät järjestelmän ja takaavat tuotantoprosessin ennen näkemättömän tarkkuuden.

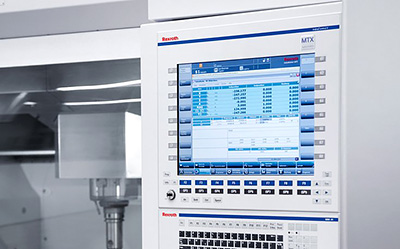

Prosessin automaatioon on käytettävissä 2 itsenäistä CNC-kanavaa. Visuaalinen ohjaus voidaan toteuttaa vankalla ja huoltovapaalla, konfiguroitavissa olevalla IndraControl VE-sarjan PC:llä tai korkean suorituskyvyn tarjoavilla IndraControl VS- ja VP-sarjoilla.



Tekniset tiedot (englanniksi):

Machining Technologies

Turning



Milling



Drilling



Grinding



Nibbling, shape cutting



Reforming



Axis control

Default number of axes



8 ●

Max. number of axes



8 ●

Max. number of spindles thereof



2 ●

Default number of independent channels



2 ●

Max. number of independent channels



2 ●

Default number of interpolating axes per channel



4 ●

Max. number of interpolating axes per channel



4 ●

Linear axes



Circular axes



Endlessly turning rotary axis



Hirth axes



Spindel/C axis change-over



Max. number of gantry groups per channel



4 ◯ ²) ⁶)

Cross-channel axis transfer



Cam



Spindle coupling over electr. gears



◯ ⁷)

Software limit switch



Master axis synchronisation



◯ ¹) ²)

Axis-specific jerk limitation



Integrated safety technology according to EN ISO 13849-1 Cat. 3 PL e and EN 62061 SIL 2 (safe stop, safe reduced speed)



Interpolation functions

Linear interpolation



Linear interpolation with/without exact halt before NC block transition



Circular interpolation with radius and center-point programming, helical interpolation



Circular interpolation with tangental entrance



Threading drill without compensating chuck



◯ ¹) ⁶)

Threading cutter



◯ ¹)

Cylinder surface transformation



◯ ¹) ⁶)

C-axis transformation



◯ ¹)

NC block preview, look-ahead



Max. 1000 blocks ●

Spline interpolation, C1 + C2, continuous cubic splines, B-splines, NURBS



◯ ¹) ²)

Nanometer resolution



Feed function

Feed in mm/min or inch/min



Time programming



Feed per rotation



Constant cutting speed



◯ ¹)

Travel to dead stop



Torque reduction



Shifts and Corrections

Mirroring, scaling, turning



Zero shift



Corrections and zero shift programmable using CPL



Placements (Frames)



◯ ³)

2D compensation



Course correction with level switch



Tangential tool guidance



Tool maintenance

Integrated, flexible tool management



Configurable tool database



Freely definable tool compensation (length, radius, cutting position compensation, user data)



Additive tool compensations (D compensations)



Access to tool data from the PLC



Access to tool data from the CNC



CNC programming

Creation of parts program (DIN ISO 66025, RS 274)



High level language programming, CPL (Customer Programming Language)



Graphical NC simulation



◯ ⁴) ⁵)

CNC user memory

MB

256

Static memory

MB

8

Max. size of parts program



PC hard disk (network file system) ●

CompactFlash data memory



Technology cycles

Turning



Milling



Drilling



Functions

Dwell time in seconds



Excelleration programming, KV-programming



Homing via NC-program



Absolute dimention, relative dimention



Change-over inch/mm



Sensor input, static/flying measurement



Read process and drive data through sercos



Rounding and milling



Corner rounding with splines



Laser power controler



Digitalisation



NC-block specification from PLC



Support for control elements

Configurable operator screens



Cycle-header/input support OEM-cycles



Block lead/block search run



Dry run



Departure and NC-block restart on the contour



Retrace function: Reversing over the contour



-

PLC programming

Integrated PLC: IndraLogic



Programming languages according to IEC 61131-3 (IL, ID, CFC, ST, SFC, FBD)



PLC program memory

MB

8

Number of local/on-board I/Os



8 / 8 ●

Max. number of local/on-board I/Os



512 / 512 ○

Number of high-speed inputs/outputs



8 / 8 ●

Number of field bus inputs/outputs in bytes



8,192 / 8,192

Multitasking



Max. number of PLC tasks



16

Diagnosis and start-up tool

Integrated, cross-system IndraWorks engineering framework



Indication and error message in clear text



Integrated project planning for drives



Drive oszilloscope



Integrated PLC project planning



Logic analyser



Circle form test



NC analyzer



Action recorder IndraMotion MTX acr



Cycle tima analyzer IndraMotion MTX cta



Energy analyzer IndraMotion MTX ega



Remote condition monitoring system IndraMotion MTX rcm



Remote diagnosis I-Remote



IndraMotion MTX micro Trainer



IndraWorks view 3D



IndraWorks machine simulator



Open architecture

Configurable user interface with all standard functions



User-specific operator screens



Adaption and integration over standardized interfaces (OPC-UA, XML, ActiveX, NET)





● Default

³) Technology package – Milling 2

○ Optional

⁴) "Turning" CNC simulation

■ Optional in connection with a PC

⁵) "Milling" CNC simulation

☐ Optional with IndraDrive

⁶) Optional "shape cutting" technology package

¹) Technology package – Turning 1

⁷) "Electronic gearing" technology package

²) Technology package – Milling 1





Electric Drives and Controls, Online version, last update 2012-03-19

© Bosch Rexroth AG, changes reserved
